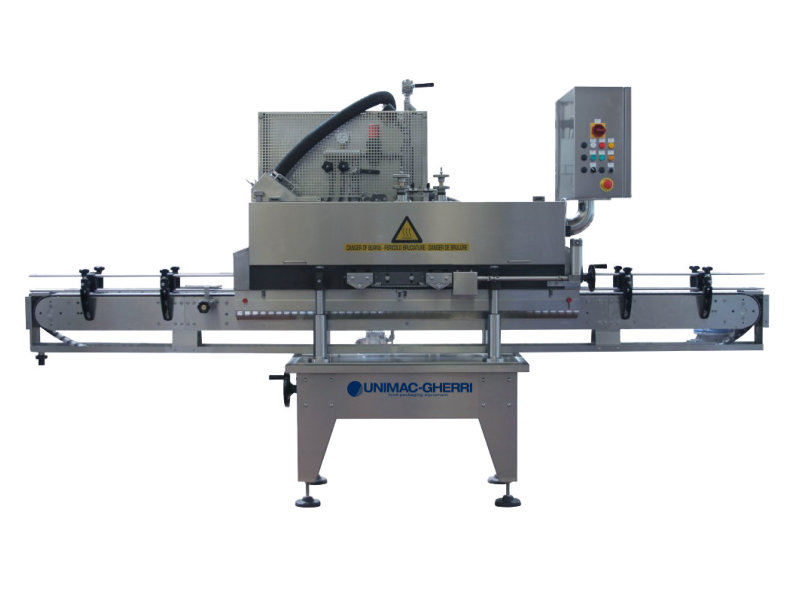

GG250 Steam Vacuum Capper
The GG250 is a Steam Vacuum Capping Machine manufactured by Unimac Gherri. It is designed to close jars and/or bottles with metal caps and creating a vacuum with the use of steam. Or optionally, with superheated steam for a dry vacuum. It has a maximum speed of 30,000 caps per hour.
- Capping operation executed in a saturated steam chamber creating a high vacuum in the container
- Constant vacuum value
- Easy format change-over adjustments, no special change parts, even with the machine in operation
- Constant screwing strength in any working conditions
- Quick format change-over operations
- High resistance to corrosion
- Extremely reliable
- Easy cleaning and maintenance
In-Line Capping Machines suitable to close: Regular, Medium, Deep Twist-Off, Pry-Twist, Pry-Off caps
Max speed 30.000 cph (Based on 38mm dia cap)
Cap Feeders: GG850 / GG950
Cap range: Ø 27 ÷ 110mm – H. 5 ÷ 19mm
Jar range: Ø 30 ÷ 160mm – H. 50 ÷ 260mm
Motorisation: 3.25 KW
Steam consumption: 100 kg/h at 3 bar
Air consumption: 5 Nl – 6 bar pressure
Water at 2 bar 8-10f°: 20 lt/h
Dimensions: LxWxH (mm): 4000x1000x2400
Machine suitable to close: Regular, Medium, Deep Twist-Off, Pry-Twist, Pry-Off caps
