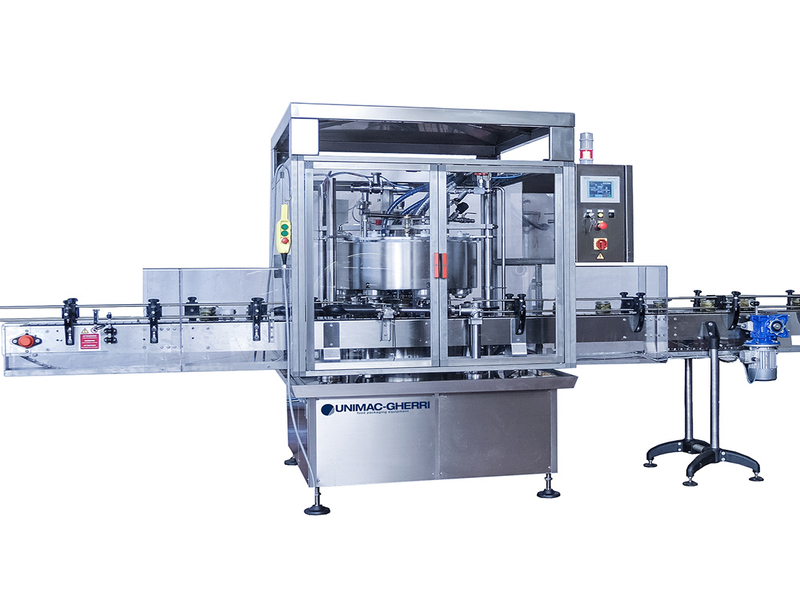

Machines designed to fill liquid products like oil, brine and similar into jars and cans containing solid products. Air is removed from inside the container by an adjustable, liquid-ring high-vacuum suction pump resulting in a fast, homogenous filling.
Stainless steel structure.
Stainless steel hopper with automatic product feeding system by a pneumatic valve controlled by level probes.
Filling valves with suitable dimensions to ease air outlet.
Independent vacuum generating system installed on its structure, consisting of a vacuum pump, a product recovery pump and a stainless steel tank.
Safety guards with microswitch to stop the machine when a door opens.
Conveyor belt motorised by gear motor controlled by frequency converter.
Stainless steel electric control box with frequency converter and PLC.
Information given on request.
Installed power: 9.5 kW Dimensions: 3000 x 1500 x H=2100 Air consumption: 50 Nl / min at 6 Bar Steam consumption: 35 kg/h Water consumption: 900 lt/h
Air is removed from inside the container by an adjustable, liquid-ring high-vacuum suction pump resulting in a fast, homogenous filling.
