LEOPARD AD

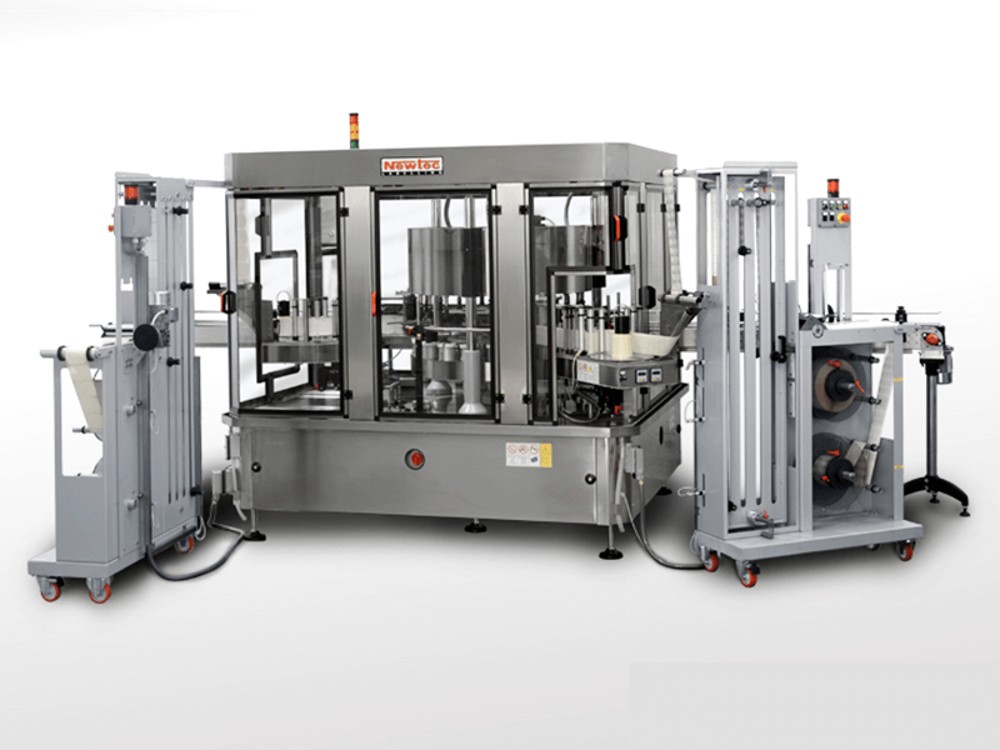

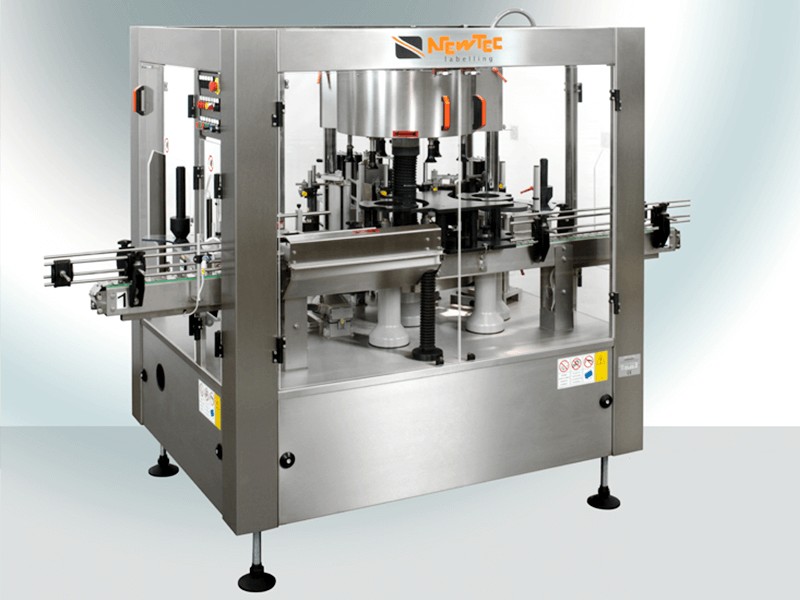

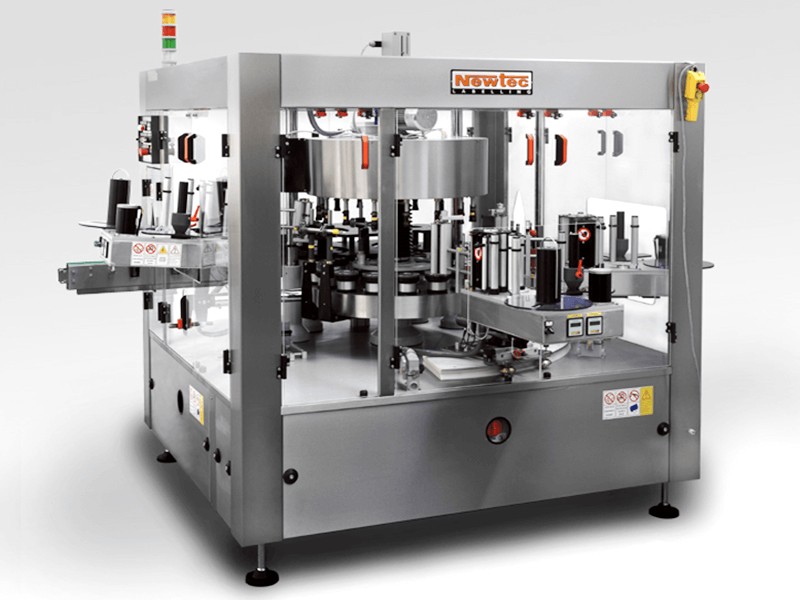

Leopard AD is an automatic labelling machine, designed for the application of multiple self-adhesive labelling machines on cylindrical, conical, oval and square-based containers.

The Leopard project comes into being with a specific goal: developing a line of labelling machines suitable for meeting the demands of a constantly evolving market. Every machine is designed after the customer’s requests in order to satisfy his specific needs, and developed according to a modern conception which brings together simplicity and sturdiness.

Every Leopard model can be assembled in ‘mixed’ versions featuring different application technologies (Self-adhesive, Cold glue, Hot glue).

Production speed from 2.000 to 30.000 containers per hour.

Features:

• Electronic camsystem: every plate is equipped with an independent brushless servomotor regulated by a programmable driver. This system allows the plates to perform complex movements, guaranteeing the user a virtually infinite range of application in terms of container shapes and label dimensions – while making possible the construction of smaller machines. Further advantages of the electronic cam system are the possibility to include centering, controlling and coding devices, even at a later date.

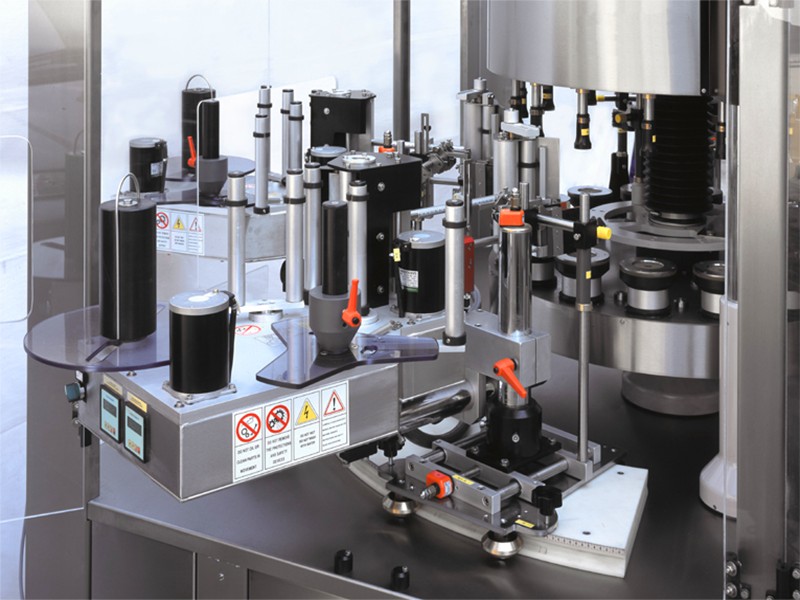

• The non-stop application system provides a continuous self-adhesive label feed. This system consists of two parallel labelling stations for the application of the same label: once the reel on the first station is finished, the second station starts working, while a new reel is loaded on the first one. The overall production efficiency thus benefits from the elimination of downtimes usually needed for loading new label reels.

Speed / Capacity:

Production speed from 2.000 to 30.000 containers per hour.

Options:

Giotto, Leopard AD, Leopard FIX, Leopard HM, Tiger, Linx, Jaguar.
