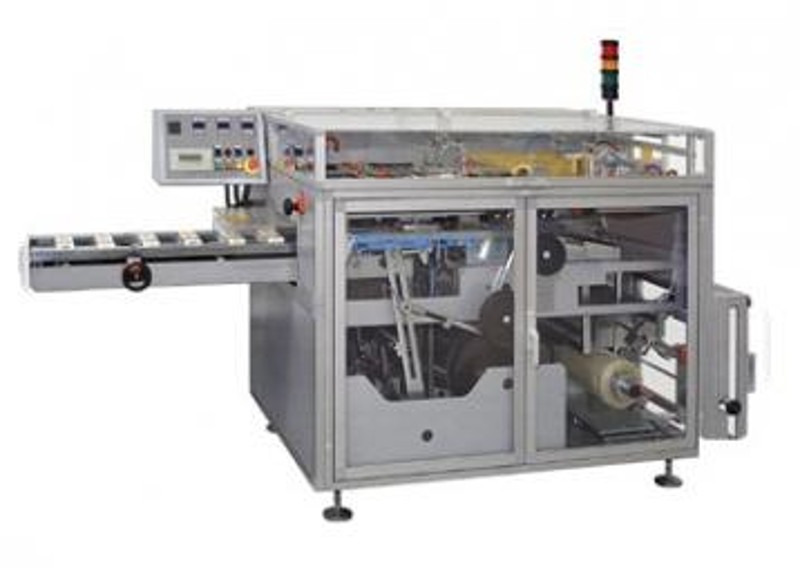

The CM40 is a versatile overwrapping machine that can be supplied with various feeding systems. The machine has proven itself at hundreds of satisfied customers worldwide. The products can be wrapped either as single packs or in bundles with heat-sealable materials from reel of coated polypropylene, cellophane, PVC and others.
Designed around three concepts: versatility, ergonomics and maximum efficiency in a small footprint; because of its flexibility and easy operation, the CM40 is one of the best known overwrapping machines in the packaging industry.
The film feeding by means of positive grippers allows the use of difficult and thin films and by stopping the film over the product guarantees an unsurpassed aesthetic quality of the overwrap.
Excellent packaging quality;
Entry level machine, competitively priced;
Highly reliable cam driven technology;
Positive unwinding of wrapping material from the roll placed in-line in reference to the product flow direction;
Discharge by sealing plates;
Quick and Easy size changeover with a minimum use of tools;
Flexible size Range;
The touch screen operator interface control panel shows all the machine functions and displays the machine status, as well as fault/alarm messages;
The speed is set from the control panel and allows the adjustment for the optimal production speed.
Automatic feeding systems tailored according to specific requests;
Tear-Tape application unit;
Film print registration unit;
Reel trimming unit;
On edge transversal sealing;
Wheels for machine displacement;
Lateral sealing belts;
Double Holder film reels with automatic splicing unit;
Automatic reject of incorrect wraps;
Automatic size changeover adjustments;
Machine Emptying by Individual Product Transport (IPT) system;
Possibility to integrate bar code readers and complete vision system;
Wide selections of coding systems (Hot Stamp, ink-jet, laser etc.);
Modem for trouble shooting;
Validation documents (IQ, OQ e FAT) supplied according to the customer’s request;
Connection to host computer.
A = min. 60 mm – MAX. 300 mm
B = min. 50 mm – MAX. 150 mm
C = min. 25 mm – MAX. 90 mm
Size changeover = OPERATOR FRIENDLY
Fast and reproducible adjustments through scaled spindles with hand wheel and digital indicator plus operator guidance via operating terminal
Mechanical speed = from 40 to 60 Wraps per minute (according to the options installed on the machine)
Installed Power (Basic machine) = 2,5 KW
Air consumption (Basic machine) = 40 NI per minute
