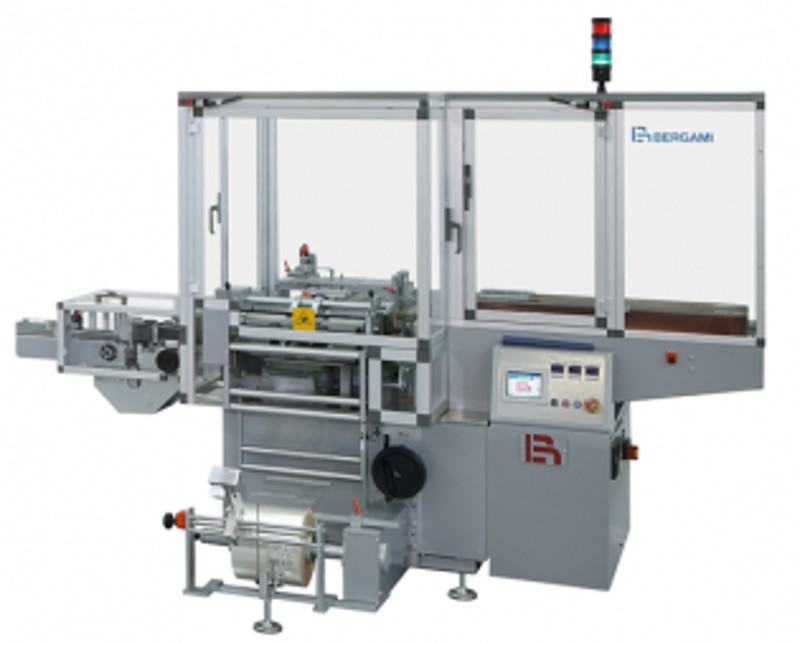

The CP150 is a medium/high speed overwrapping machine that can be supplied with various feeding systems. The products can be wrapped either as single packs or in bundles with heat-sealable materials from reel of coated polypropylene, cellophane, PVC and others.
The machine has been designed to satisfy the requirements for Foods, confectionery, tea, coffee, tobacco, paper, cosmetic and pharmaceutical industry.
To achieve high speeds, the film feeding system is positioned at a right angle to the product flow and is performed by positive toothed belts contrasted by elastic rollers.
The film web cut and transport is performed with servomotors for an easy size change over procedure
Excellent packaging quality;
Highly reliable combination of cam and Servo driven technology;
External side loading film reel;
Ergonomic mounted shaft with quick expansion lock device to allow a fast change of the film reel;
Discharge by sealing plates;
Centred product stop within the sealers to obtain even a point seal in the same position on all packages;
Simple and fast carton size changeover;
Flexible size Range;
The touch screen operator interface control panel shows all the machine functions and displays the machine status, as well as fault/alarm messages;
The speed is set from the control panel and allows the adjustment for the optimal production speed.
Automatic feeding systems tailored according to specific requests;
Tear-Tape application unit;
Film print registration unit;
Reel trimming unit;
On edge transversal sealing;
Wheels for machine displacement;
Lateral sealing belts;
Double Holder film reels with automatic splicing unit;
Automatic reject of incorrect wraps;
Automatic size changeover adjustments;
Machine Emptying by Individual Product Transport (IPT) system;
Possibility to integrate bar code readers and complete vision system;
Wide selections of coding systems (Hot Stamp, ink-jet, laser etc.);
Modem for trouble shooting;
Validation documents (IQ, OQ e FAT) supplied according to the customer’s request;
Connection to host computer.
A = min. 60 mm – MAX. 300 mm
B = min. 60 mm – MAX. 150 mm
C = min. 15 mm – MAX. 90 mm
Size changeover = OPERATOR FRIENDLY
Fast and reproducible adjustments through scaled spindles with hand wheel and digital indicator plus operator guidance via operating terminal
Mechanical speed = up to 150 Cartons per minute
Installed Power (Basic machine) = 5 KW
Air consumption (Basic machine) = 16 NI per minute
