UG06

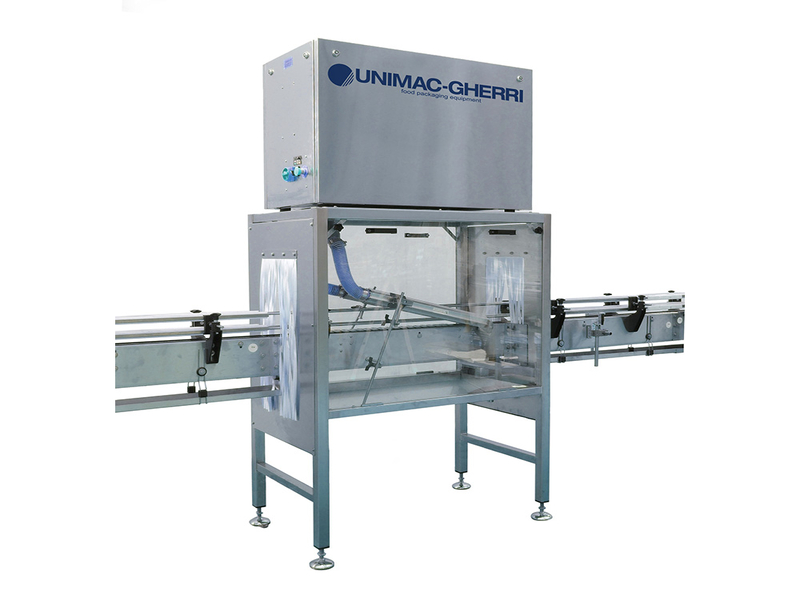

UG06 Drying Tunnel
UG06 is suitable for fine draining. To be installed on a conveyor belt .
Designed to dry capped containers, coming from the filling or pasteurising area, before final packaging.
Features:
- Stainless steel structure with adjustable supports to the floor.
- Transparent, removable panels on both sides of the structure.
- Drp-collecting pan in stainless steel with terminal discharge.
- Conveyor belt supports with fixing brackets.
- Support for the blowing unit with separator in the blowing area.
- Spray protecting covers at infeed and outfeed.
- One (1) blowing unit, equipped with filter.
- 3 or 6 adjustable and orientable air blades in aluminium, with supports to be fixed to the conveyor.
- Flexible connection pipes between the blowing units and the air blades
- Electric control panel with frequency converter.
- Max. speed. 28.000cph with H.110mm containers
Format:
Designed to dry capped containers, coming from the filling or pasteurising area, before final packaging.
Speed / Capacity:
UG06 Drying Machine has 3 or 6 adjustable and orientable air blades in aluminium, with supports to be fixed to the conveyor. Max. speed. 28.000cph with H.110mm containers.
Technical Data:
DRYING TUNNEL MOD. UG06:
Stainless steel structure with adjustable supports to the floor.
Electric control panel with frequency converter.
Max. speed. 28.000cph with H.110mm containers
